Fully electric retractable towbars
Advantages
- Maintenance-free
- Immediately ready for use
- Comfortable manual handling
- Ball neck - neither assembly nor disassembly necessary
- No visibility of ball neck and socket in 'rest' position
- Visual (LED display) and/or audible feedback (buzzer) on the system's operational readiness
- Waterproof and therefore submersible
- Integrated socket

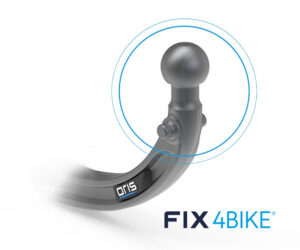

- With FIX4BIKE® feature
Quickly ready for use
Our fully electric retractable towbar is available at unrivalled speed. This is made possible by the unique geometry of the pivoting process around only one inclined axis. Comfortably at the push of a button - triggered by a push button located in the vehicle cockpit or trunk - our ORIS towbar swivels to the operating position and automatically engages there and back again.
Ergonomically aligned
The towbar is available at the push of a button, making it extremely convenient to use. The ACPS Automotive system has many other unique selling points including a socket (necessary for the electrical connection of the vehicle and trailer or carrier system) embedded in the ball neck. This ensures maximum ergonomic comfort and is really easy to reach. The operational readiness of the system is supported acoustically and / or visually.
Compact installation
Due to the special geometry of the pivoting process, the full-electric towbar requires hardly any space to accomodate the towbar behind the bumper and makes it invisible when not in use. Nevertheless, it allows the use of key features of your car such as Park Distance Control or the foot switch for the boot/trunk.
Technical Data
| D-Value* | up to 16.8 kN |
| Tongue load | up to 220 kg |
| Trailer load | up to 3,500 kg |
* The D value is a fixed force value that includes the permissible total weight of the towing vehicle and the maximum permissible total weight of the trailer.
What if the data given here doesn't fit your vehicle-specific requirements?
Please do not hesitate to contact us, because we also develop tailor-made components and solutions.
Half-electric retractable towbars
Advantages
- Maintenance free
- Ready for use very quickly
- Comfortable manual handling
- Ball neck - neither assembly nor disassembly necessary
- No visibility of ball neck and socket in 'rest' position
- Safety check by LED display and/or buzzer tone
- Waterproof and therefore submersible
- Integrated socket
- With FIX4BIKE® feature
Quickly ready for use
Our half-electric retractable towbar is available very quickly. At the touch of a button - with an operating system in the boot/trunk - our ORIS towbar, which is located in the invisible installation space, can be released from its resting position at the touch of a button. The ball neck can be easily brought into the operating position by lifting it slightly with one hand and then it locks into place automatically. The correct positioning of the system is supported acoustically and / or visually.
Ergonomically aligned
The half-electric retractable system from ACPS Automotive not only scores highly with its simple and ergonomic handling, but also with a socket, necessary for the electrical connection of vehicle and trailer or carrier system, embedded in the ball neck. This placement ensures maximum ergonomic comfort and is uniquely easy to reach.
Compact installation
Due to the special geometry of the pivoting process, the half-electric towbar requires hardly any space to accomodate the towbar behind the bumper and makes it invisible when not in use. Nevertheless, it allows the use of key features if your car such as Park Distance Control or the foot switch for the boot/trunk.
Technical Data
| D-Value* | max. 16.4 kN |
| Tongue load | max. 140 kg |
| Trailer load | max. 3,200 kg |
* The D value is a fixed force value that includes the permissible total weight of the towing vehicle and the maximum permissible total weight of the trailer.
What if the data given here doesn't fit your vehicle-specific requirements?
Please do not hesitate to contact us, because we also develop tailor-made components and solutions.
Manually retractable towbars
Advantages
- Maintenance free
- Ready for use very quickly
- Comfortable handling
- Ball neck - neither assembly nor disassembly necessary
- No visibility of ball neck and socket in 'rest' position
- Waterproof and therefore submersible
- Integrated socket
- With FIX4BIKE® feature
Quickly ready for use
Activating the release lever in the boot or under the vehicle, our ORIS towbar, which is invisibly installed behind the bumper of the car, is released from the locking device and swivels in the direction of the fixed operating position. The ball neck can easily be brought into the operating position by lifting it slightly with one hand and it locks there automatically. The correct positioning of the system is supported acoustically and/or visually.
Ergonomically aligned
The manually retractable system from ACPS Automotive not only scores with its simple and ergonomic handling, but also with a socket, necessary for the electrical connection of vehicle and trailer or carrier system, embedded in the ball neck. This placement ensures maximum ergonomic comfort and is uniquely easy to reach.
Compact installation
Due to the special geometry of the pivoting process, the manually retractable towbar requires hardly any space to accomodate the towbar behind the bumper and makes it invisible when not in use. Nevertheless, it allows the use of key features of your car such as Park Distance Control or the foot switch for the boot/trunk.
Technical Data
| D-Value* | max. 16.4 kN |
| Tongue load | max. 140 kg |
| Trailer load | max. 3,200 kg |
* The D value is a fixed force value that includes the permissible total weight of the towing vehicle and the maximum permissible total weight of the trailer.
What if the data given here doesn't fit your vehicle-specific requirements?
Please do not hesitate to contact us, because we also develop tailor-made components and solutions.
